Send InquiryCapacitance Tan-Delta Test Set
Price 5000 MXN ($)/ Unit
MOQ : 1 , , Unit
Capacitance Tan-Delta Test Set Specification
- Accuracy
- ±1% of Reading
- Resistant Feature
- Dustproof and Shockproof
- Usage & Applications
- Insulation testing, Power transformer, CT/PT, Bushings evaluation
- Pressure
- Standard Atmospheric
- Frequency (MHz)
- 50 Hz / 60 Hz
- Insulation Box
- Yes
- Protection System
- Overvoltage & Overcurrent Protection
- Size
- Portable
- Color
- Grey
- Dimension (L*W*H)
- 500 x 380 x 320 mm
- Weight
- Approx. 12 kg
Capacitance Tan-Delta Test Set Trade Information
- Minimum Order Quantity
- 1 , , Unit
- Supply Ability
- 50 Units Per Month
- Delivery Time
- 7-15 Days
About Capacitance Tan-Delta Test Set
Since our establishment in the year 1975 we have been engaged in manufacturing and exporting Capacitance TanDelta Test Set This test set is extensively used to measure dissipation and capacitance of various equipment Manufactured at our well equipped manufacturing unit as per set international quality standards using supreme quality components this test set is tested thoroughly by our quality analysts on various defined parameters Offered Capacitance TanDelta Test Set can be purchased from us at pocket friendly prices
Features
Rugged design
Long service life
Low maintenance
Smooth performance
Specifications
Input Voltage 230V 1 50 60 Hz AC
Test Voltage Continuously Variable 0 12 KV 50Hz AC
Capacity 200mA maximum in the HV side
Duty Cycle 200mA 15min and 100mA Continuous

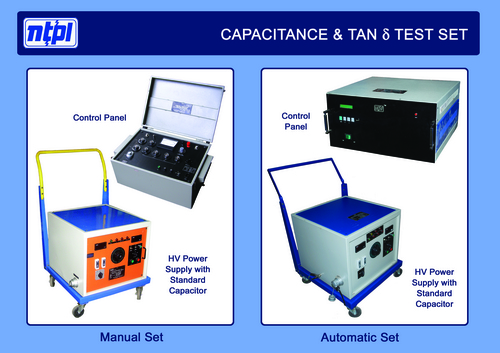

Type Manual SemiAutomatic Automatic
All Sets are provided with Standard Built in Capacitor
This power capacity of the test voltage enables Test object of capacitance up to 0053 F at 12 KV and 03F at 2KV
Range extension CT and Variable Reactor is available at extra cost
Precision Insulation Testing for Power Equipment
The Capacitance Tan-Delta Test Set provides accurate diagnostics of insulation integrity in equipment like power transformers, CT/PTs, and bushings. Designed with rigorous safety features, it ensures reliable operation and precise measurements in both field and laboratory environments, helping users prevent costly failures and extend equipment life.
Portable and Durable for Field Applications
Weighing approximately 12 kg and featuring a compact, robust grey casing, this test set is both portable and resilient. Dustproof and shockproof, it withstands demanding site conditions, making it ideal for onsite inspections and maintenance work by utilities, manufacturers, and service engineers in India.
FAQs of Capacitance Tan-Delta Test Set:
Q: How does the Capacitance Tan-Delta Test Set improve insulation testing?
A: This instrument measures the dissipation factor (tan-delta) and capacitance of insulation in power transformers, CT/PTs, and bushings, assessing insulation quality and detecting early signs of deterioration. It provides high accuracy (1% of reading), helping prevent unexpected failures and costly outages.Q: What safety features are included in this test set?
A: The Capacitance Tan-Delta Test Set is equipped with overvoltage and overcurrent protection systems, safeguarding both the device and the user from electrical hazards during testing.Q: When should insulation testing be performed using this device?
A: Insulation testing should be conducted during commissioning, scheduled maintenance intervals, or whenever equipment shows signs of insulation weakness. Early detection helps plan repairs before catastrophic failures occur.Q: Where can this test set be effectively used?
A: Its portable, shockproof, and dustproof design enables effective use onsite in substations, transformer yards, or any environment requiring insulation assessment, as well as in laboratories for quality control.Q: What is the process for using the Capacitance Tan-Delta Test Set?
A: To use, connect the device to the insulation system you wish to evaluate, power on, and select the appropriate frequency (50 Hz or 60 Hz). Ensure the protective system is active, then initiate testing and record the dissipation factor and capacitance readings for assessment.Q: What are the main benefits of using this insulation test set?
A: Key benefits include high measurement accuracy, operational safety, portability, and durability. These features enable fast, dependable evaluations of electrical insulation to extend equipment lifespan and ensure power system reliability.
