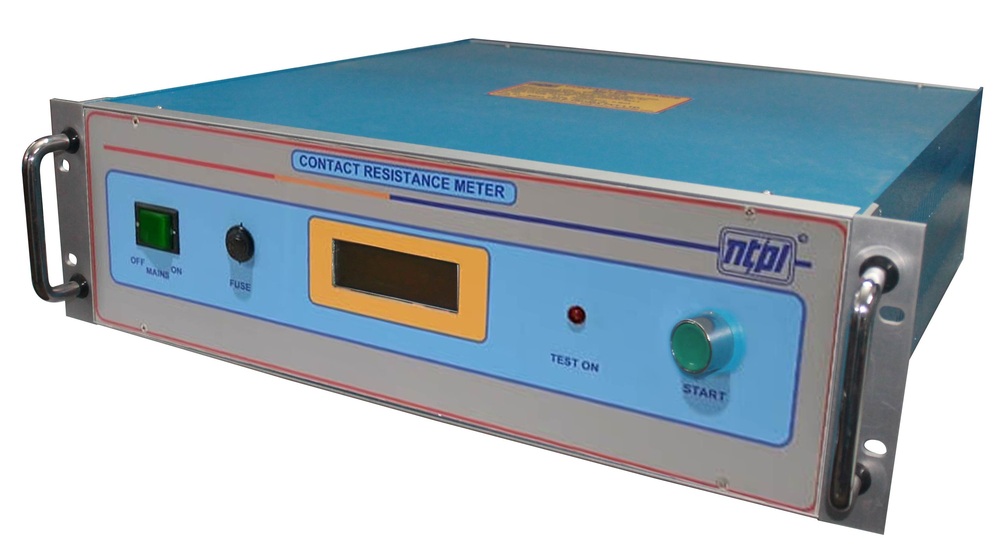

"NTPL" MAKE CONTACT RESISTANCE METER

About "NTPL" MAKE CONTACT RESISTANCE METER

"NTPLmake CRMNT-100A2r,is capable to measure low resistances like circuitbreaker contacts, bus-bar joints, contact elements in bus bars and otherhigh-current linksetc. by circulating high value DC current through contact/junction andmeasuring the contact resistance.

Technical features:

InputPower Supply            :               230 Volts+10%, 50Hz,single phase AC.

Test Current                       :               100A DC.

Resistance Range             :              200µ„ (199.9 µ„), Resolution: 0.1 µ„, 2000µ„ (1999 µ„), Resolution: 1 µ„,

Accuracy                            :              0.5 %

Terminals                            :               4 terminal Measurement.

Display                                      :               LCDDisplay for indication of Resistance value across contact.

Operation Mode                  :               Automatic, Current Injection time 30Seconds max.

Environment:

a) Operating temperature: 5 C to 50 C.

b) Humidity:  5% -95% RH, non-condensing.

The above Test unit will be single compact, rugged & portable type providedwith handle for easy movement.

·        ·        ·        ·        ·        ·        ·        ·        ·

DOCUMENTS:

Operation Manual, Works Test Report, WarranteeCertificate will be supplied along with the set.

Approx. Dimension:  L=  483 mm X  W=  534 mm  X   H=  102mm

Approx. Weight:  8  Kgs.
