High Voltage Measuring System

Name: High Voltage Measuring System
Brand: NEO TELE-TRONIX PVT. LTD.
Price: 5000 MXN
Availability: InStock

Price 5000 MXN ($)/ Unit

Get a Price/Quote

MOQ : 1 , , Unit

High Voltage Measuring System Specification

Batteries Type
Rechargeable NiMH battery pack

Resistant Feature
Shock and moisture resistant housing

Pressure
Atmospheric pressure environment

Accuracy
±1% of reading

Usage & Applications
Testing and calibration of high voltage systems, power utilities, laboratory measurements

Product Type
High Voltage Measuring System

Frequency (MHz)
Up to 60 Hz (AC)

Insulation Box
Provided for operator safety

Protection System
Integrated overload protection circuitry

Size
Compact, portable design

Color
Yellow & Black

Dimension (L*W*H)
450 x 220 x 180 mm

Weight
Approx. 6.5 kg

High Voltage Measuring System Trade Information

Minimum Order Quantity
1 , , Unit

Supply Ability
50 Units Per Month

Delivery Time
7-15 Days

About High Voltage Measuring System

Since our inception in 1975, we have been engaged in manufacturing and exporting high performing High Voltage Measuring System that is widely used in various industries for measuring the voltage in diverse electrical applications. Manufactured using optimum quality components under the supervision of our adroit professionals, this voltage measuring system is tested by our quality analysts on several parameters. Offered High Voltage Measuring System is available in different specifications to meet the diverse needs of the clients and can also be availed at affordable prices.

Features:

Durability
Temperature resistance
Hassle-free performance
Accurate measurement

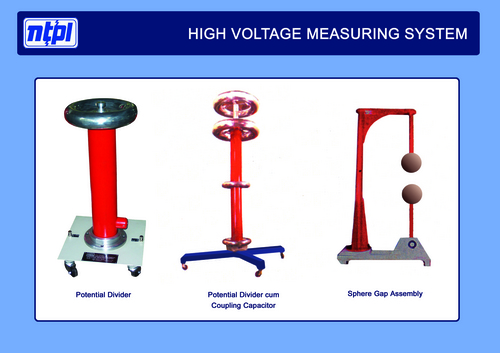

The System includes:

Resistive Potential Divider
Capacitive Potential Divider
Dissipative Capacitive Potential Divider
Sphere Gap Assembly
Electro-magnetic Potential Transformer

Range : 20 KV to 500 KV AC & 750 KV DC / Impulse

All the above equipment are supplied with Read-Out System.

Reliable Performance and Safety

Engineered with an integrated overload protection circuit and safety-focused insulation box, this measuring system safeguards operators during high voltage testing. Its shock and moisture resistance further guarantees safe usage in diverse environments, reducing the risk of accidents.

Versatile Applications

Ideal for laboratories, power utilities, and calibration centers, this devices compact design and portable build facilitate convenient use wherever precise high voltage measurements are required. The systems rechargeable NiMH battery enables field and remote operations.

Precision in Measurement

Delivering measurements with 1% accuracy, the system supports frequencies up to 60 Hz (AC). Its advanced design ensures reliable results, crucial for maintaining and calibrating high voltage systems under atmospheric conditions.

FAQs of High Voltage Measuring System:

Q: How does the insulation box ensure operator safety during high voltage measurements?

A: The insulation box acts as a protective barrier, preventing accidental contact with live components and reducing electrical hazards for the operator during high voltage testing and calibration.

Q: What is the process for using the High Voltage Measuring System in calibration tasks?

A: To use the system, first connect it to the high voltage source under atmospheric pressure conditions, power it on, and follow the provided instructions to measure or calibrate as needed. Its portable design and overload protection make the process straightforward and safe.

Q: When should this system be used instead of traditional measuring devices?

A: This system is particularly recommended when high accuracy (1%) and enhanced operator safety are required, such as during high voltage system testing, calibration in labs, or when working in challenging field conditions.

Q: Where can this measuring system be deployed for best results?

A: It is best suited for laboratories, power utilities, calibration facilities, or any onsite environments where reliable and safe high voltage measurements are necessary.

Q: What are the key benefits of using this high voltage measuring system over conventional models?

A: Key benefits include its robust insulation box for operator safety, overload protection circuitry, high precision, resistance to shock and moisture, and its portable, compact design for versatile deployment.

Q: How does the rechargeable NiMH battery pack contribute to system usage?

A: The rechargeable NiMH battery pack allows the system to operate independently of mains power, making it convenient for fieldwork or in locations where electrical outlets are not readily available.
