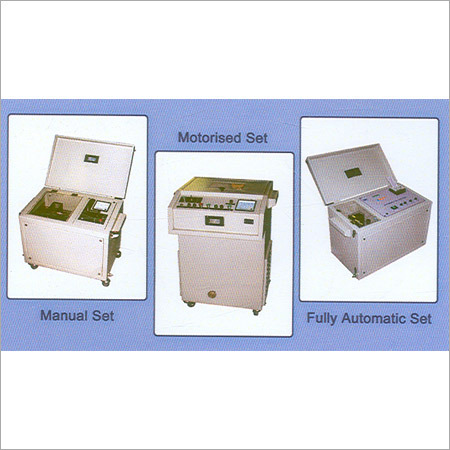

Oil Break Down Voltage Test Set

Name: Oil Break Down Voltage Test Set
Brand: NEO TELE-TRONIX PVT. LTD.
Price: 5000 MXN
Availability: InStock

Price 5000 MXN ($)/ Unit

Get a Price/Quote

MOQ : 1 Unit

Oil Break Down Voltage Test Set Specification

Resistant Feature
Oil resistant, Corrosion resistant

Usage & Applications
Testing dielectric strength of transformer and insulating oils

Batteries Type
Not Applicable (Mains Operated)

Accuracy
1% of reading

Pressure
Atmospheric

Product Type
Manual , Automatic

Frequency (MHz)
50-60 Hertz (HZ)

Insulation Box
Acrylic Transparent/High-strength insulating material

Protection System
Overload, Earth Leakage and Short Circuit Protection

Size
Standard/Customizable

Color
Blue & Grey

Dimension (L*W*H)
NA Centimeter (cm)

Weight
NA Ounce (oz)

Warranty
12 months

Safety Interlock
Lid interlock to disable high voltage while open

Control Panel
User-friendly with selector switches and indicators

Compliance Standards
IS:6792, IEC:60156 or equivalent

Humidity Range
Up to 90% RH (non-condensing)

Input Supply Voltage
230 V AC, 50 Hz

Test Cell Capacity
400 ml to 500 ml

Electrode Gap Adjustment
0.5 mm, 1 mm, 2 mm (Adjustable as per standards)

Test Duration Timer
0-999 seconds (configurable)

Automation Level
Manual & Semi-Automatic Models Available

Display Type
Digital / Analog (Model Dependent)

Trip Mechanism
Automatic trip on breakdown

Oil Break Down Voltage Test Set Trade Information

Minimum Order Quantity
1 Unit

FOB Port
kolkata

Supply Ability
50 Units Per Month

Delivery Time
7-15 Days

Sample Policy
Sample costs shipping and taxes has to be paid by the buyer

Packaging Details
Wooden Package

Main Domestic Market
All India

Certifications
ISO 9001:2015

About Oil Break Down Voltage Test Set

We are a well acclaimed manufacturer and exporter of Oil Break Down Voltage Test Set. This set is widely used in industries to test the load bearing capacity of insulating oil or liquid. It is integrated with advanced technology and engineered by using best quality raw materials sourced from reputed market vendor. Oil Break Down Voltage Test Set is stringently tested on various standard quality parameters before the final dispatch in market.

Versatile & Reliable Oil Testing Equipment

This test set provides accurate measurement of oil breakdown voltage, essential for assessing transformer and insulating oil quality. Its adjustable features, such as electrode gap and automation level, offer versatility for various testing scenarios. Built-in safety mechanisms, corrosion-resistant construction, and compliance with global standards guarantee dependable performance for manufacturers, suppliers, and exporters in India and worldwide.

User-Friendly Operation & Safety Features

Designed with a user-centric control panel, the test set allows seamless operation via selector switches and indicators. The automatic trip system, lid safety interlock, and comprehensive protection schemes safeguard both users and the device. The unit is suitable for laboratory and on-site usage, maintaining high accuracy and safety in each test cycle.

Engineered with Standards Compliance

Meeting IS:6792, IEC:60156, or equivalent standards, the equipment ensures that your test results remain internationally recognized. The device's accuracy, configurable timers, and high-strength transparent insulation box support robust and repeatable testing under a variety of environmental conditions, including high humidity.

FAQ's of Oil Break Down Voltage Test Set:

Q: How does the Oil Breakdown Voltage Test Set evaluate transformer oil quality?

A: The test set measures the dielectric strength of insulating oils by applying a gradually increasing voltage across electrodes immersed in the oil sample. The breakdown voltage, at which electrical discharge occurs, indicates the oil's quality and suitability for use in transformers and electrical equipment.

Q: What is the process for adjusting the electrode gap in the test cell?

A: To adjust the electrode gap, simply set the spacing to one of the selectable values-0.5 mm, 1 mm, or 2 mm-as per the testing standard required. This can be done manually following the guidelines provided in the equipment's user manual, ensuring accurate and compliant testing conditions.

Q: When should I use the manual vs. semi-automatic model of this test set?

A: The manual model is ideal for basic, hands-on operations, giving users full control over each test step. The semi-automatic model provides added convenience, automating certain functions to streamline repeat testing and reduce operator workload, making it suitable for higher-volume testing environments.

Q: Where can this test set be used and who are the typical users?

A: This equipment is primarily used in transformer oil testing laboratories, maintenance departments, and quality control units in power utilities, transformer manufacturing, and oil suppliers. Its robust construction makes it suitable for both indoor laboratory settings and on-site field testing.

Q: What safety mechanisms are included in the test set?

A: The test set is equipped with overload, earth leakage, and short circuit protection systems. Additionally, it includes a lid interlock that disables high voltage if the lid is open, as well as an automatic trip mechanism that stops the test immediately upon oil breakdown, ensuring operator safety at all times.

Q: How does the test set ensure measurement accuracy and repeatability?

A: With an accuracy of 1% of the reading, standardized electrode gap settings, and a configurable test duration timer (0-999 seconds), the device ensures consistent, reliable results that comply with IS:6792 and IEC:60156 standards. Its user-friendly features promote repeatable procedures and robust data integrity.

Q: What are the main benefits of using this Oil Breakdown Voltage Test Set?

A: Users benefit from precise, fast assessments of oil dielectric strength, critical for equipment reliability and safety. The unit's customizable features, high safety standards, and robust construction offer long-term value for manufacturers, suppliers, and maintenance professionals engaged in transformer and insulating oil testing.
