High Voltage Impulse Generator

Get a Price/Quote

Product Details:

Resistant Feature Moisture and dust resistant housing
Pressure Standard atmospheric (special models available on request)
Accuracy 1.5% of set value
Usage & Applications Testing insulation properties of electrical equipment, transformers, cables, bushings
Product Type High Voltage Impulse Generator
Frequency (MHz) 50/60 Hz (impulse frequency as per standard: 1.2/50 s)
Insulation Box Yes, provided with robust insulation housing
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

High Voltage Impulse Generator Price And Quantity

Minimum Order Quantity 1 , , Unit

High Voltage Impulse Generator Product Specifications

Color Grey/Blue
Size Standard/Customizable (details on request)
Resistant Feature Moisture and dust resistant housing
Weight Approx. 450 kg
Product Type High Voltage Impulse Generator
Frequency (MHz) 50/60 Hz (impulse frequency as per standard: 1.2/50 s)
Usage & Applications Testing insulation properties of electrical equipment, transformers, cables, bushings
Accuracy 1.5% of set value
Insulation Box Yes, provided with robust insulation housing
Protection System Integrated overvoltage and overload protection
Dimension (L*W*H) Customizable, typical: 1500mm x 800mm x 1800mm
Pressure Standard atmospheric (special models available on request)

High Voltage Impulse Generator Trade Information

Supply Ability 50 , , Unit Per Month
Delivery Time 7-15 Days

Product Description

To live up to the expectations of valuable clients, we are engaged in offering high performing High Voltage Impulse Generator that is used for generating voltage for various equipment. This voltage impulse generator is manufactured at our hi-tech manufacturing unit under the guidance of seasoned engineers using quality-approved components. It is made available in different specifications to satisfy the exact needs of the clients. Our clients can avail this High Voltage Impulse Generator from us at pocket-friendly price.

Features:

Robust construction
Durability
Excellent performance
Low maintenance

Specifications:

Max. O/P Voltage : 0 - 140 / 200 / 280 / 300 / 420 KV
Capacity : 400 J - 18 KJ
Nature of Impulse Wave : 1.2/50 uSec

This Set mainly consists of:

Capacitor Charging Unit
Peak Voltmeter
Charging Resistors
Generator Capacitors
Triggering System
Wave Shaping elements, Series resistance & parallel resistance

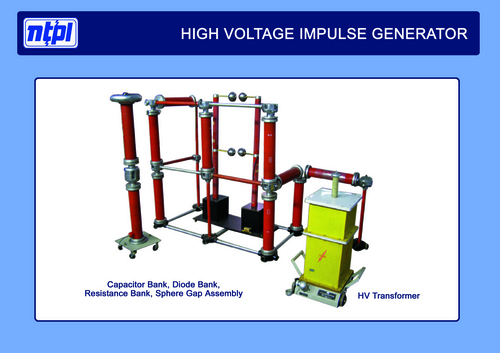

Potential Divider, Integrated Impulse Generator Control Panel
Output termination for measurement of Impulse Voltage by CRO

Comprehensive Protection and Reliable Performance

Fitted with a sturdy insulation housing and integrated overvoltage and overload protection, this impulse generator is designed for maximum operational safety and reliability, even in challenging environmental conditions. Advanced resistant features shield sensitive components from moisture and dust, extending the service life and accuracy of the equipment.

Versatile Design for Diverse Testing Applications

Available in standard as well as customizable sizes, the generator meets a wide array of testing requirements. It is ideal for laboratories and manufacturing units focused on the validation and quality assurance of insulation in electrical apparatus, such as transformers and cables.

Precision and User-Focused Engineering

Engineered for accuracy within 1.5% of the set value, the generator aligns with leading international electrical testing standards. Clear user-oriented controls and documentation make the operational process straightforward, supporting both routine and advanced diagnostic tasks.

FAQs of High Voltage Impulse Generator:

Q: How is the High Voltage Impulse Generator commonly used in electrical testing?

A: The generator is primarily utilized to test the insulation properties of electrical equipment like transformers, cables, and bushings, ensuring these components can withstand high-voltage surges in real-world conditions.

Q: What protection systems are integrated into this impulse generator?

A: This system features built-in overvoltage and overload protection mechanisms, providing both operational safety and protection for connected devices during high-stress testing scenarios.

Q: When should I consider opting for a customized size or specification?

A: Customized sizes or specifications are recommended when standard dimensions do not fit your testing environments or when specialized testing requirements are needed for non-standard equipment.

Q: Where can this impulse generator be installed, and what are the placement requirements?

A: The unit can be installed in electrical testing laboratories, manufacturing quality departments, or research facilities. Standard atmospheric conditions suffice, but special models are available for environments with unique pressure conditions.

Q: What is the operating process of the generator?

A: After proper installation and setup, users can select the appropriate test parameterssuch as impulse frequency and voltage leveland the system will generate standardized high-voltage impulses for insulation testing while maintaining protection throughout the process.

Q: What are the main benefits of the robust insulation housing?

A: The robust insulation housing not only prevents accidental contact with live parts but also offers superior resistance against moisture and dust, safeguarding the internal components and maintaining measurement accuracy.
